Part Number(s):

DS160(White)20K0027
DS161(Black)20K0005



Description:

The DS160/161 is a passive-infrared (PIR) detector designed for Request to Exit (REX) interior applications. The technology designed into the DS160/161 is based on the principal that all objects emit infrared energy. The warmer an object is, the more infrared energy emitted. Its PIR technology allows the DS160/161 to detect the change in infrared energy that occurs when a person passes through its field of view.

The G3 and G3D controllers support dual motion channels on each of the 2 RS485 Adapter motion ports. If the primary RS485 motion input is damaged, the alternate wiring method may allow for continued use of the port without repair or loss of functionality.

The DS160 is default safety device shipped with all our wired automation systems.  It offers excellent range and performance when properly configured.  For a given installation, the DS160 is wired according to which controller is attached to the automation system.


Wiring:

Bosch DS160 to a G1/D Controller

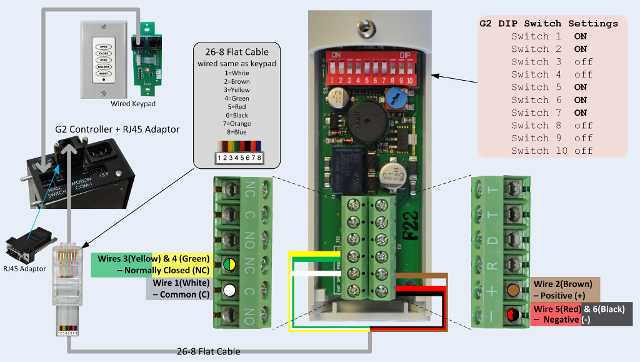

Bosch DS160 to a G2 Controller

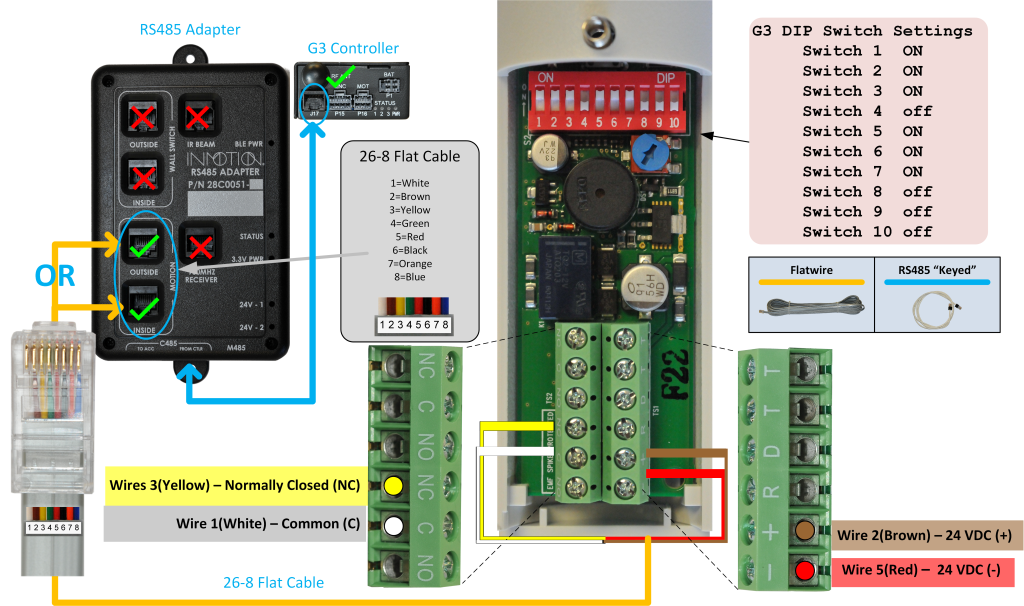

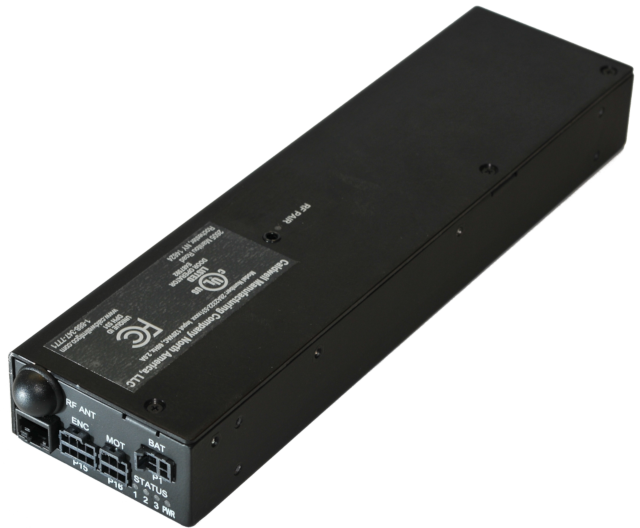

Bosch DS160 to a G3 Controller

G3/G3D Normal Wiring


G3/G3D Alternate Wiring

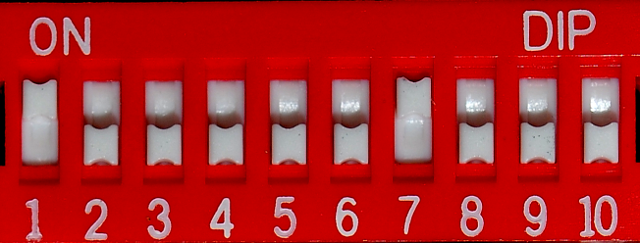

G1/G1D DIP Switch Settings

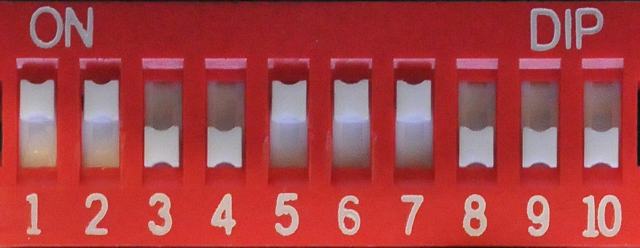

G2 DIP Switch Settings


G3/G3D DIP Switch Settings
DIP Switch SettingsG1/G1DG2
G3/G3D
1: LED Operation - ON: LED indication of motion. OFF: LED indication off
OnOnOn
2: Timer Reset Mode - ON: Relay timer starts on motion & restarts on additional motion. OFF: Relay timer starts on motion & drops when timer expires regardless of additional motion.

OffOnOn
3: Relay Mode - Inverts relay Normally Open(NC) to Normally Closed(NO) and vise versa.

OffOffOn
4,5,6: Relay Timer - On motion, holds relay triggered
    G1: 0.5s (default)
    G2: 4.0s
    G3: 4.0s (G3 supports 0.5-4.0s if desired)

OffOffOff
OffOnOn
OffOnOn
7: Signal Processing - ON(default High Sensitivity). OFF(Low Sensitivity)

OnOnOn
8: Door Secure Mode - OFF(not used)

OffOff
Off
9: Door Secure Mode - OFF(not used)

OffOffOff
10: Door Secure Mode - OFF(not used)

OffOffOff

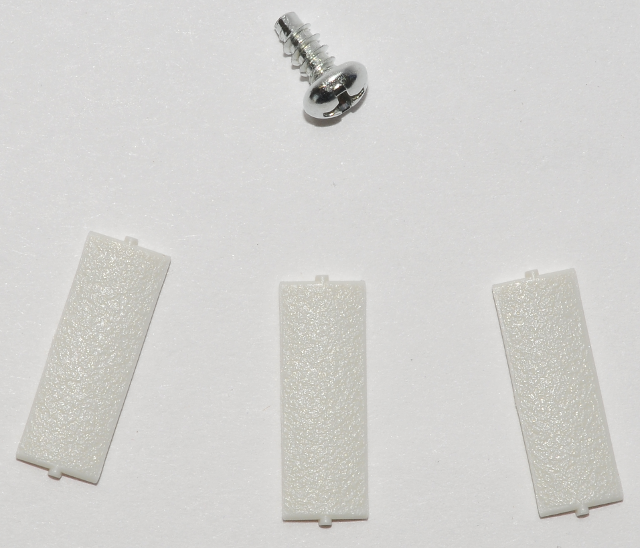

Self-Tapping Screw & Masking Wedges

The self-tapping screw are to used secure the cover to the base while the masking wedges allow for customized detection patterns. The self-tapping screw hole is "filled'in" and will need to be drilled out.




Locking Screw

The DS160's sensor can be rotated. Once the sensor is in position and adjusted, the rotating barrel should be locked in place with the screw provided. The screw can be located by removing the cover and looking on the sensor side of the unit (opposite the circuit board side).
