Typical Installation Tools
|RJ45 Cable Checker||Network cable (26/8 flat wire) continuity checker|
|A simple network wire tester is an invaluable tool when running flat wire to accessories or to the controller. It detects continuity, opens, shorts and crossed RJ45 conductors. Available at Home Depot and Amazon for about $80 and $45 respectively.|
Both testers include at least one remote module enabling the user to test cabling in the wall without an assistant.

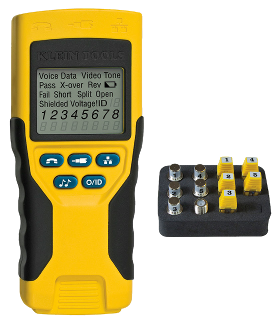

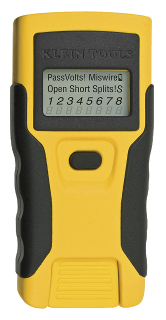

The "Klein Scout Pro 2" includes 5 additional modules with unique numeric ID's for network, and coaxial cable testing. The Scout Jr. only supports RJ45 network testing and 1 remote module.
Both testers are available as regularly stocked items at local Home Depots and Amazon.com.

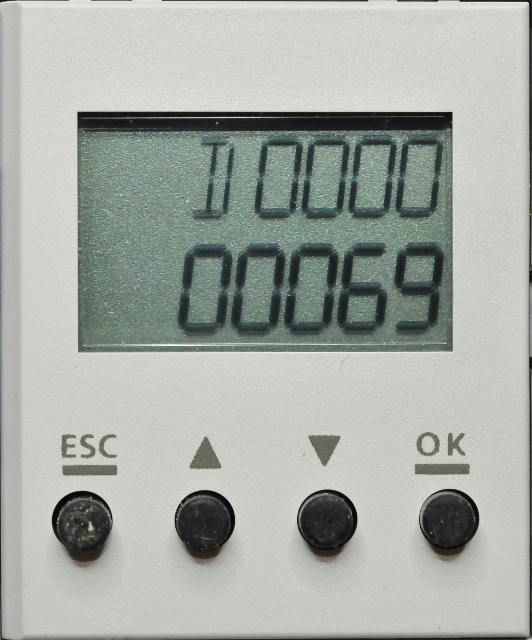

|IDEC FC4A-PH1 (For G1 and G1D Only)||Used to change G1x controller parameters for special installations|
|Cordless drill / driver||Motor, return pulley, hole cutting etc.|
|3/8" & 7/16" Open End Wrenches||Turnbuckle belt tension adjustments|
|Drill bit kit, Paddle Spade Bit Kit||Drilling pilot holes, wire runs, etc|
|Chisel (for metal)||Used when installing an "inverted" motor kit.|
|1/8" shim spacers||Motor shimming & Alignment|
|Extended Phillips Screwdriver Bit||Motor Mount||Useful when driving home the 4 motor mount screws if space is limited|
|Tape measure||Used during controller initialization / setup||G2 controller requires doors opened to 2-4' during initialization.|
|6' Jamb Level||For installation & mechanical verification|
|Allen Wrench Set||For motor encoder use 3/32"||500 Series Motor Encoder screws: 3/32" Alan wrench|
|Ladders||Head track hardware|
|RJ45 Crimper / Stripper||Controller wiring uses RJ45 26/8 telephone grade flat wire||Strips, cuts and terminates RJ45 connectors to 26/8 telephone flat wires|
|Wire Cutter/Stripper/Crimper||General wiring |
|2 1/8" & 1" Hole Saws||Cutting holes for drive belt routing|
|Pulley Jig||INMOTION tool for cutting head track when using 1/2" return pulley||Used in the head track to cut out the center walls of track 1 & 2 for one-way door installation. The provided guide holes align with the 1/2" return pulley. Call service to purchase.|
|Dremel Tool w/metal cutting & grinding discs||May be used instead of Pulley Jig to cut head track for return pulley install||If the above jig is not on hand, a Dremel tool with the appropriate cutting bits can be used.|
|Hammer, Screw Drivers (Philips & Blade), etc||General install tools|
|Precision Screw Drivers||Wire installation for accessories like motion detectors & G1 controller home automation header||1/8" & 3/32" blade screw drivers for various wiring headers|
